Unexpected Wave (2021-12-19)


I had a great flight on the 19th of December, 2021.

Here's a recap of the flight with in-flight photos:

https://www.weglide.org/flight/116650
or
https://seeyou.cloud/flight/public/6gNDJVjON-L3quDyX09t0V?u=i


Syed and I launched to overcast skies; maybe a spot or two of blue might be seen. I elected to leave the oxygen system on the ground and launch anyway.
I took a 4000' tow. The headwinds on the flight computer showed 340 at 11. We released between Signal Knob and the Strasburg quarry (1728Z). I circled around in some weak thermals. Nothing really usable over Signal Knob or Meneka Peak (1740Z). The computer said the winds were too northerly for me to go run the ridge (See my diagram below, which I've drawn from experience, anecdote and survivorship bias; the numbers on Sunday were between "Marginal" and "My Limit" ). Eventually I found a good thermal right over the fish pond (1751Z). I worked my way upwind to the next band of clouds (1800Z). Riding just below the clouds, I gained speed, popped out in front of the cloud and got into the wave (1803Z).


By 1805Z we were in the wave, in front of the clouds, and climbing on a northeasterly course toward Stevens City. We turned around, headed south back toward the Massanutten. The clouds were starting to clear out and the lift bands were getting more defined at this point. You can see the photos taken in weglide; there are little camera icons at each point in the flight.


At 1904Z we connected with the best wave lift of the flight; a solid 5-6 knots right over the town of Woodstock.  We stopped climbing because I didn't have oxygen, and I really don't like flying high without oxygen. My personal limit is 10000 feet and I won't go a foot above it. Did you know that the EASA rules for flying gliders in Europe prohibit flying gliders above 10,000 feet? They had enough marginally hypoxic pilots smash into the side of Mont Blanc to change the rules for all of Europe.

By this time the clouds were really well defined.  You can see the sat photos overlay with the flight in SeeYou.  By this time, it was just a matter of "follow the clouds, and you'll find lift"
This sat photo was taken approximately the same time that I was at the arrow location in the SW corner of this flight.

SeeYou flight with sat photo overlay

At 1920Z I leveled out at 7600 feet, turned the vario into "netto mode" and tried to maintain altitude while flying as fast as possible.  I got a true airspeed of 104 knots until 1940Z, where the wave wasn't as strong.  We kept going north toward Winchester.  By this time, my bladder was starting to complain, so we decided to head back.

The AWOS was reporting 340 at 9, variable wind direction from 030 to 330.  This should be exciting. I guess it was uneventful, but not my best landing.

I managed to have zero wave flights in all of 2020; the first time in more than a decade that I hadn't gotten into any wave at all during a year.  2021 turned out to have wave at least 8 different times throughout the year, including one in July (!)  This is two flights this year that I thought there "might" be wave, and I left the O2 system on the ground.  I should revise my plan that even if there isn't a 5% chance of wave, I'll pack it onboard.  Who knows?!

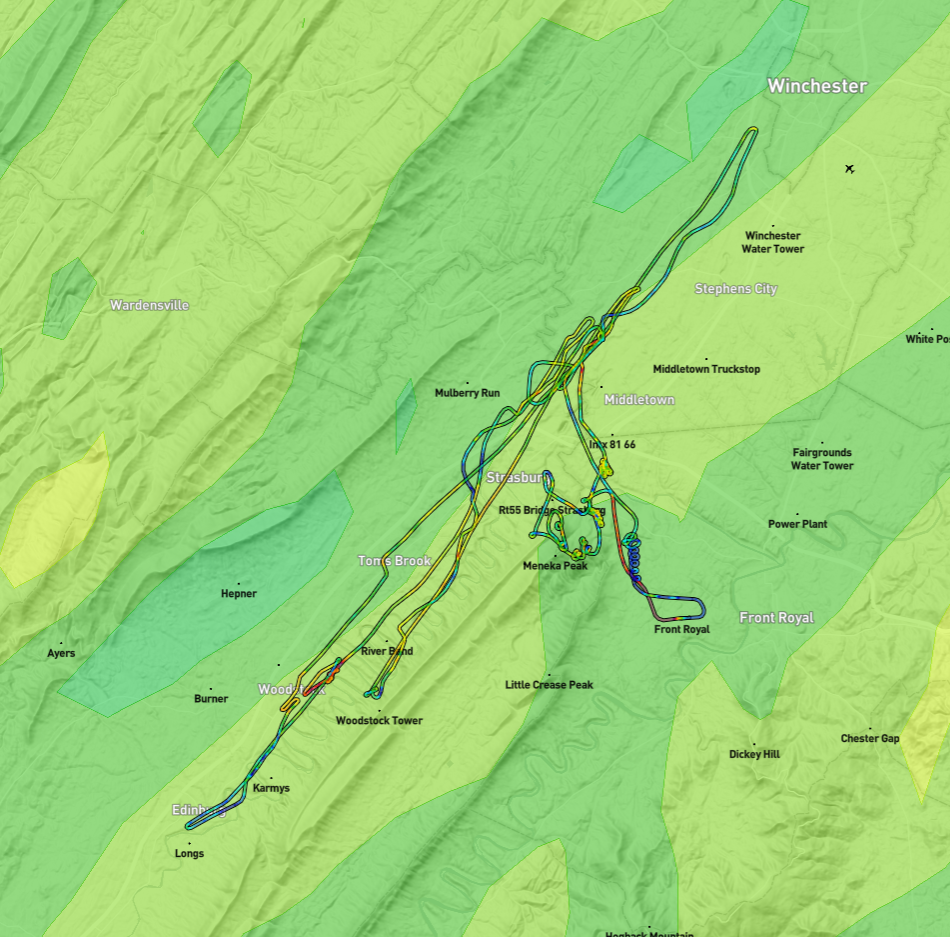

SkySight really under-predicted the wave; here's the IGC overlay against the 10000' wave prediction for Sunday:


Monday, May 24, 2021

QQ Instrument Panel Functionality

Back in 2020, I performed a massive upgrade to the instrument panel for the QQ glider. The main reasons for this huge upgrade included:

Transponder Installation

Installing a transponder, so that Air Traffic Control can easily see my glider and route airliners around me. A transponder is a small radio transmitter that sends out radio signals that Air Traffic Control (ATC) can interpret.  The modern transponders are programmed with a unique signal identifying the aircraft. They also have a small altimeter on-board, so they report altitude information, too.  Any aircraft flying into the busy airspace around big airports need to be equipped with a new style of equipment that compliments the transponder, called ADS-B.  The ADS-B signal sends GPS information along with the transponder signal. In addition to sending location information, ADS-B is also rebroadcast by radio towers installed at choice locations.

What this means to you:  as a regular person, you can now get a great view about where all of the airliners and general aviation aircraft are at any time.  You can pull up a website called FlightAware.com to see details about those planes flying over your house.  Here's the FlightAware.com screenshot from my house here on a Thursday night:



Now that QQ has an ADS-B installation -- in addition to the transponder -- You could watch my flight unfold as I'm doing it.  Here's the FlightAware ground track of a flight I took on the 23rd of January, 2021.
Green line shows ground track, as recorded from FlightAware.com

What this means to me: Now that ATC can see my little invisible glider very clearly, when there is an airliner bearing down on me, I don't have to depend on the airline captain to be looking out his window to see me.  ATC will notice me on their scopes, realize I'm a glider, and route the airliner around me. Aviation safety is definitely increased because of my transponder installation. There are places north of where I normally fly where aircraft come barreling over Winchester, converge over Winchester, and head on toward Dulles.  There are times when I'm flying at the same altitude as those airliners.  There are times I've been flying in an airliner and recognized the scenery that I've flown over this exact spot in a glider.  I've definitely got more peace of mind since the transponder installation.

New Flight Computer

The whole panel was redone to make room for this huge screen.  The screen is much more easily read than the older flight computer that it replaced.  The display is much more easily read, even in the bright sunlight. The flight computer presents a lot more useful information in one view, without having to hunt around for different information on different screens.

Now that I have more screen real estate, I can get information about nearby aircraft.  Since other aircraft are also ADS-B equipped, I can see them on the flight display.  This is not a substitute for actually looking outside, as there are still many aircraft that do not have an ADS-B installation. When other aircraft are on a collision course, the flight computer gets information from an ADS-B receiver, detects if there's a possible collision course, and displays that information on the screen, along with a robot voice, telling me where to look.

Better Navigation

There are times when I'm flying the glider, and the lift has quit.  I have the option of landing in a field somewhere.  I have come to prefer landing at airports -- there's so much less drama.  But if I'm doing an unexpected diversion toward an airport, maybe it would be handy to have that information on-hand when I'm going there.  What is the tower frequency?  What is the runway length? What sort of facilities can I find? Back in the old days, you would carry a book with you called the "Airport Facilities Directory."  If you've ever seen my skinny cockpit, and my non-skinny presence, you'd notice there is a distinct lack of space.  Not even much space for a small booklet.

Airport Facility Directory.  Do they even print these anymore?

That booklet is obsolete every few months, takes up a lot of space.   The flight computer stores all that information, and makes its recall really easy.

LX9070 Airport Information View

LX9070 landing checklist with airport schematic

The LX9070's interface has the capability to upload any pictures of an airport, which I import from the FAA's published information in the Digital Chart Supplement (which used to be called an Airport Facility Directory, AFD).  I also found a way to easily show the landing checklist, along with the airport diagram, and details about the airport.  Neat.

Back Seat Comfort

I prefer to fly QQ from the back seat.  I get to stretch out, and I can monitor my passenger more closely (to tell when they're about to get airsick). Having the passenger in the front seat often means that they  may not be familiar with how to operate the radio.  There are some kinds of operation that can confuse people: what knobs to turn, etc.  I can coach them through all the things to press, but I'd rather not.  One of the features of the new flight computer is a bridge from the flight computer to the radio system.  By pressing buttons on the flight computer, I can tune or modify the radio in the front seat. In fact, when approaching an airport, I simply tell the flight computer to tune the radio to the airport that we're approaching. That way, the passenger in the front seat can continue enjoying the view.

Calculating Glider Mass

LX9070 Weight and Balance
We can fill up the water tanks in the wings and the tail to make the glider heavier.  I do this at a penalty of increased sink rate, but a much higher benefit of a speed increase.  There is no penalty for the overall glide ratio by making the glider heavier.  In order to calculate how much faster the glider should be flown, some careful calculations for how much water should be added have to be evaluated against the maximum mass that the glider can sustain.
In the example to the right, I can fly with two reasonably heavy pilots on-board, another 66 liters of water in the wings, 10 liters of water in the tail, and still be within the flight limits of the glider.  The nose isn't too heavy (from the heavy pilots) the tail isn't too heavy (by adding too much water) and we haven't exceeded the maximum mass of the glider.   The chart to the right shows the dry mass with a green dot, and a blue dot (at the middle top of the chart) showing the wet mass.
With the new flight masses computed, the flight computer automatically adjusts the suggested speeds, to make the most efficient flying speed possible. In the old ways, I would just have to eyeball-it for a number that was maybe-right-maybe-wrong.



Ridge run on a task

In-Flight information On-Task

While competing at the Region 2 competition in Mifflin, Pennsylvania, our first competition day was a ridge task.  After I got out of the start area, I set out on task. The task involved ridge soaring to a location called Spruce Creek, PA.  The pink line shows my direct course to the waypoint, the grey line shows the current ground track.  I can see the winds in two places, one little arrow next to my glider icon, and another representation of the estimated winds in the bottom left corner.  On this page, I have the current glide ratio (which was showing infinity, meaning I'm not descending at all), along with a "You need this kind of glide ratio to get to your waypoint, which is 49 in this picture.  In other words, "If all the lift stops right now, you need 49:1 glide ratio to get to the waypoint.  My glider can only generate 44:1 at its best, and I would come up short, without the assistance of any lift along the way.



Thursday, February 4, 2021

QQ Panel Upgrade

 During the COVID-19 shutdown in March through April 2020, I spent a lot of time and money to upgrade the instrument panel for my glider.

When I first bought the glider, QQ was equipped with an ILEC SN-10B.  The ILEC SN-10B is quite old as far as flight computers go, but it's still quite capable for doing many navigational and contest tasks.  However, when I got the flight computer, there was a small problem with it.  One of the pins in that flight computer's serial cable had broken, which made it impossible to upload information into the SN-10.  I replaced the SN-10 with an LXNav 8080.

I installed the LX8080 a few days before my first contest at Mifflin, and quite frankly had no idea how to operate it on the first day of the contest. By the end of the contest, I had figured out most of the things I needed to do to make it useful.  Over the next 3 years, I grew to master its function, and actually got to like it.  It was much better than the old SN-10 that it replaced.

Around September of 2019, I started realizing that this flight computer, although capable, was rather small for my aging eyes.  It is only the size of a standard 80mm diameter flight instrument.  While this size is quite convenient for making it a drop-in replacement for most other instruments, it's really not a good size for many of the new features that are in the later models of the flight computers from the same manufacturer.

I had ordered brand new blank instrument panels from the glider's manufacturer in August of 2019. By December 2019, I had ordered all of the equipment for the replacement panel.  Items started showing up in January and February. I had a friend do most of the work in cutting out the holes in the panel with a laser cutter, a router, some drills, some files and sandpaper.

I spent many evenings wiring up the back of the panel. I sent a nightly email to the certified aircraft inspector who decided to mentor me through this whole thing.

By June, I was flying with the new instrument panel. The whole task of doing the panel upgrade was a huge effort and deserves a page of its own.

Functionality test to ensure all components got power
(and nothing caught on fire)

After everything was installed, we performed a weight and balance. I created a Google Sheets document to simplify the task of handling all the data for weight and balance (W&B): pilot mass, parachutes, wing water, tail water.  There are many things that have to be verified when handling the weight and balance.  If there are any items out of the required parameters, the checklist shows a warning or an error bar.  All of the numbers show up on steam gauges on the spreadsheet.

Weight and balance for two heavy pilots, still flyable!

Final installation, front seat

Final installation, rear seat
